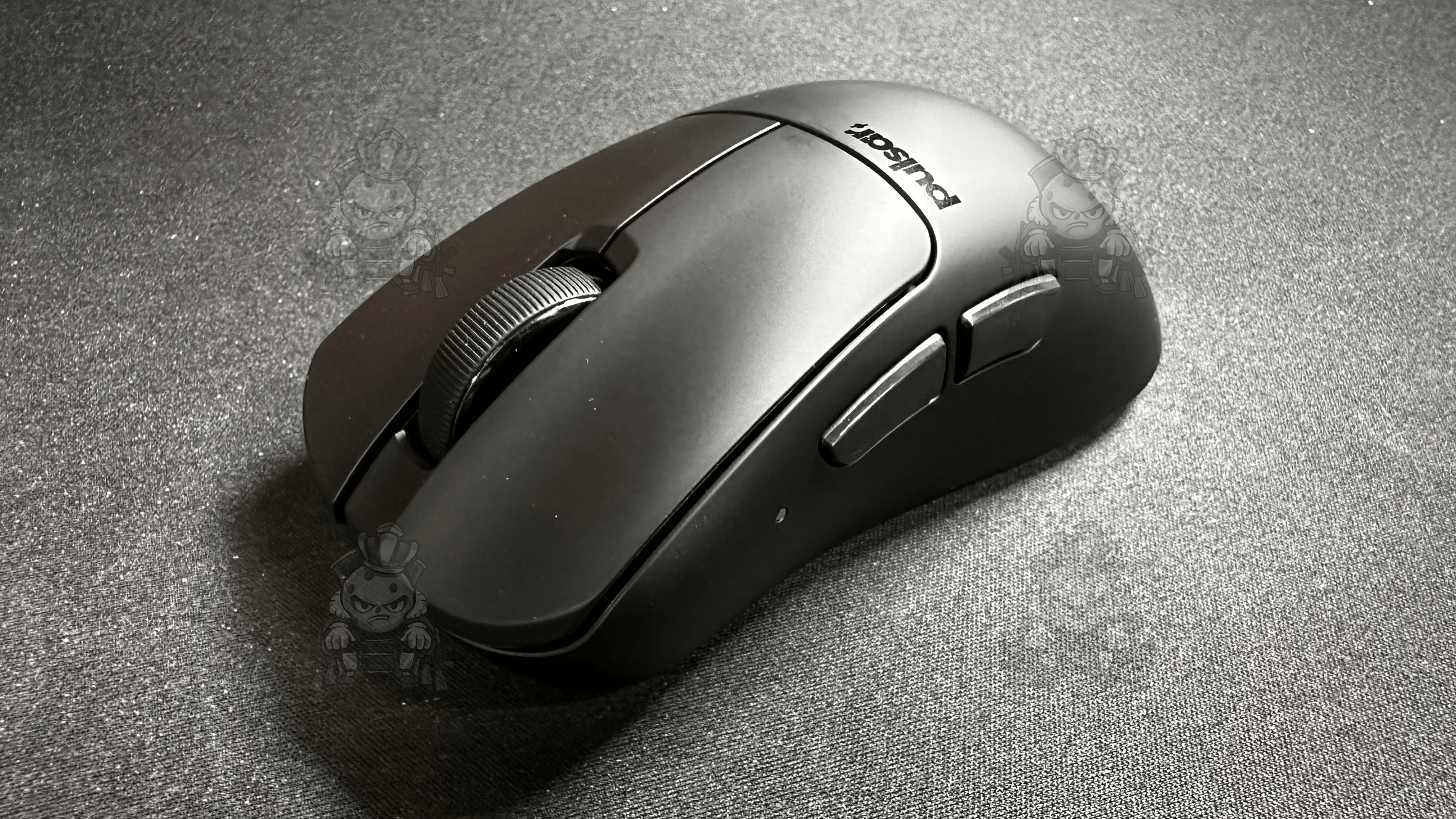

Pulsar Xlite V3 Medium
Gaming Mouse Review
Technology

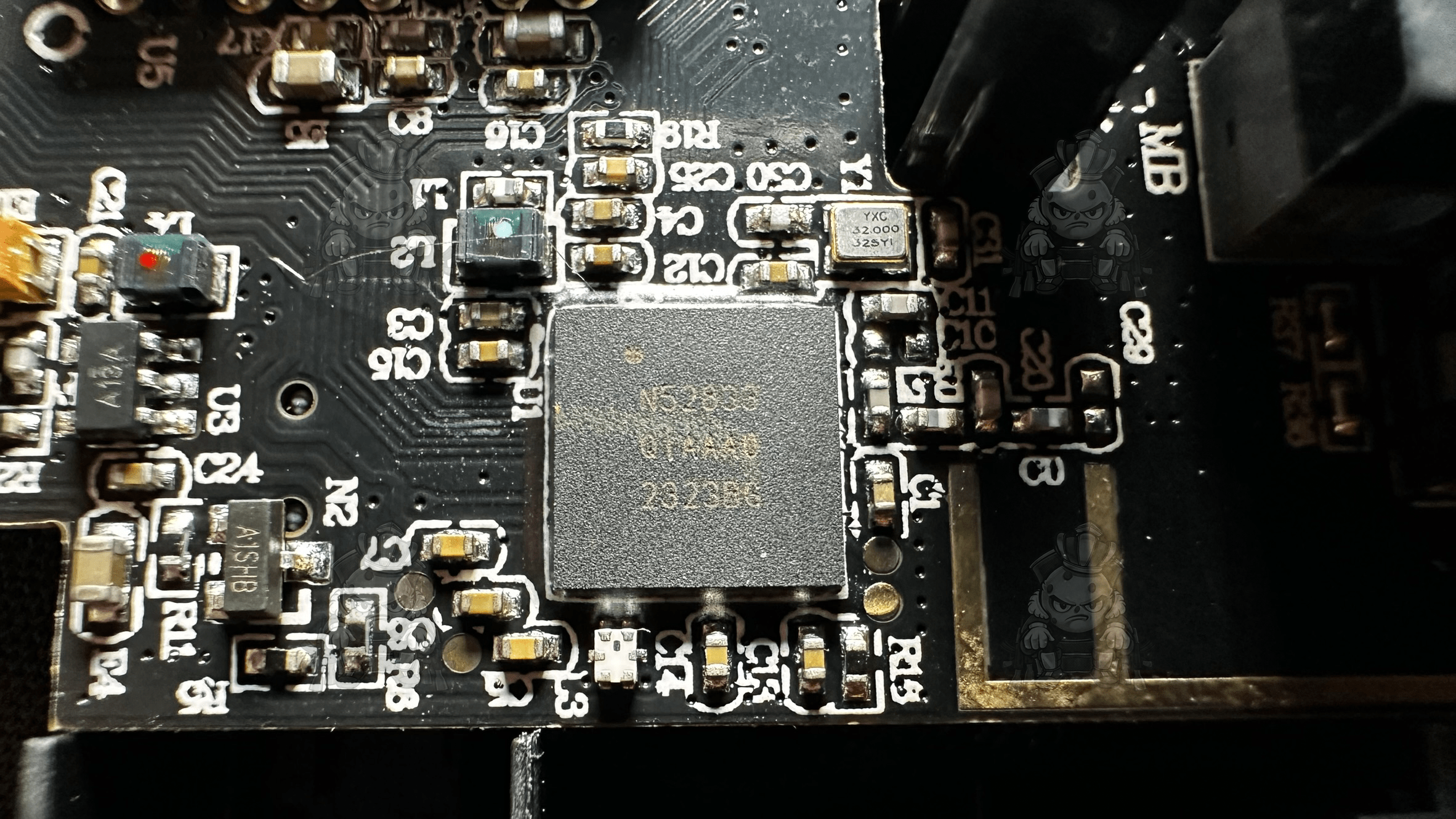

- MCU:Nordic nRF52833
All mice contain a small circuit board inside to handle the connection between inputs and the computer. Some are more complex than others, which is why these so-called Microcontroller Units (MCUs) are needed, which are essentially specialized miniature computers. Most modern mice today are equipped with more complex microcontrollers to manage things like stored profiles and CPI settings and to ensure a smooth connection, especially in wireless mice.

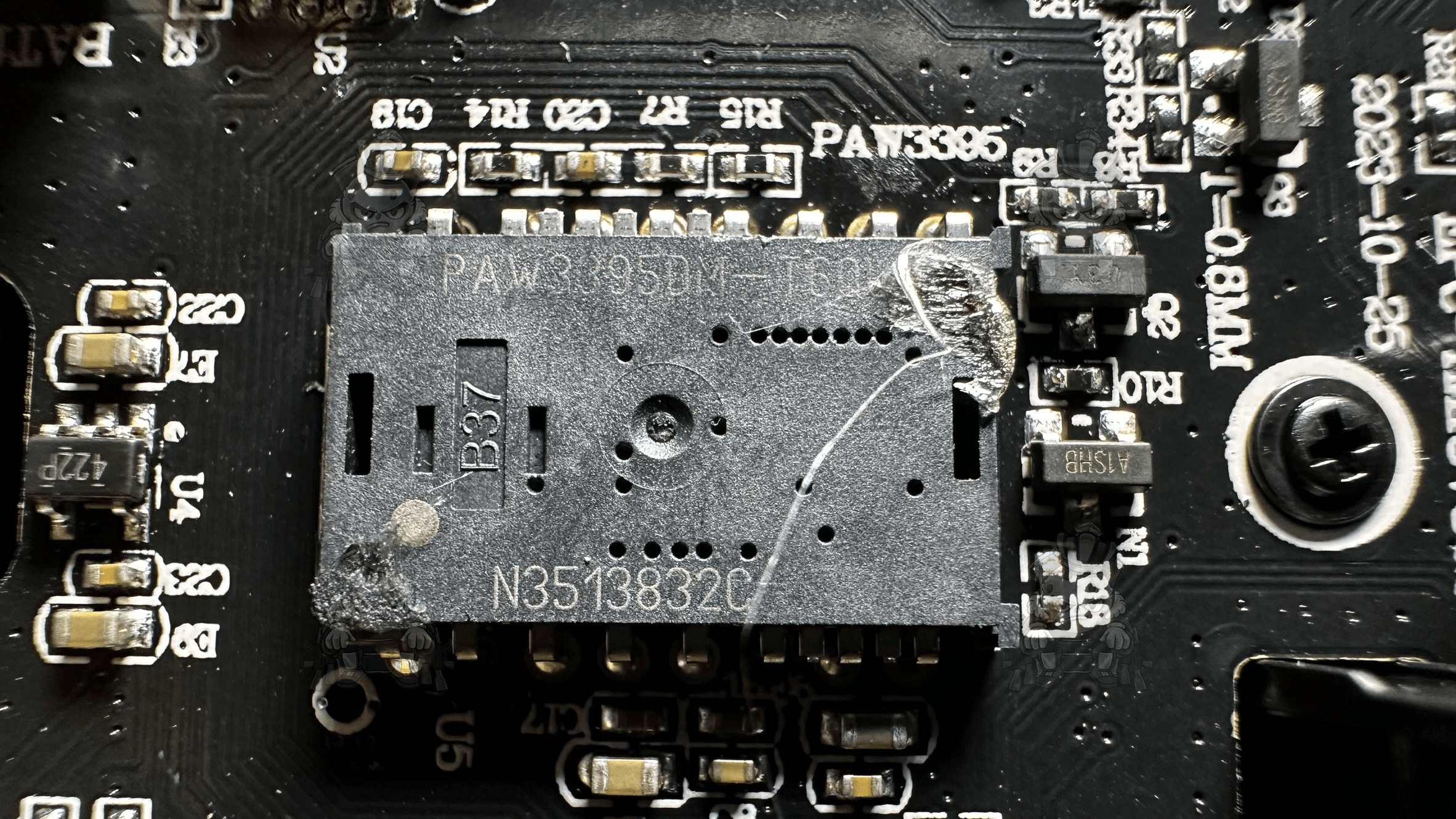

- Sensor:PixArt PAW3395
- Resolution:26,000CPI
The resolution of a mouse, also known as CPI, indicates how many pixels the cursor on the screen moves when you move the mouse one inch on the mousepad or table. Many mouse manufacturers and some online sources use the term DPI to refer to the same thing. However, DPI stands for ‘Dots per Inch’ and refers more to screen resolutions, while CPI stands for ‘Counts per Inch’ and directly relates to the sensitivity of a mouse. The higher the CPI of a mouse, the “finer/more precise/more frequent” the sensor can scan the surface. However, this does not mean you should play with the highest CPI.
- Polling rate:4,000 / 2,000 / 1,000 / 500 / 250 / 125Hz
The polling rate, also known as the report rate, is the frequency at which the mouse communicates with the computer and makes inputs (responds). The polling rate is measured in Hz and can vary between 125 Hz and 8,000 Hz depending on the brand and model of the mouse in question. For example, a mouse with a polling rate set to 1,000 Hz will update its position on the screen 1,000 times per second, or every 1 ms. The higher the polling rate, the more “real-time” the cursor movement you see on the screen will be.
- LOD:1 mm, 2 mm
The Lift-Off Distance (LOD) refers to the height at which a mouse sensor stops tracking the surface it’s on. A high LOD means that the mouse continues to track even when lifted off the surface. Therefore, a low LOD allows tracking to stop sooner, preventing unwanted mouse behavior. On the other hand a higher LOD means the mouse will draw more energy which often results in a crispier feeling but for the cost of less battery life.
- Motion Sync:(adjustable)
Many of the latest high-end gaming mice offer the option to enable Motion Sync, which synchronizes SPI reads with USB polling, resulting in less jitter. This feature is often found in PixArt 3370 or newer sensors. Motion Sync has its pros and cons, and whether or not to use it often depends on the games you play and how much you notice these extremely fine differences.
When correctly implemented, Motion Sync promises higher sensor reactivity by synchronizing the signals the mouse sends at the exact intervals the PC is looking for these data. This leads to more consistent data exchange, which helps in tracking targets better. However, while Motion Sync is enabled and the sensor tracks more consistently, it pushes data to the next polling event, leading to a minimal higher input delay of a few milliseconds, depending on the MCU and sensor used, which polling rate is utilized, and how much power the components are allowed to draw (LP, HP, Corded / God Mode). In short, Motion Sync is comparable to VRR technologies like G-Sync, where one must decide if they are willing to sacrifice a minimal delay for a smoother experience on the monitor.
I currently recommend disabling Motion Sync

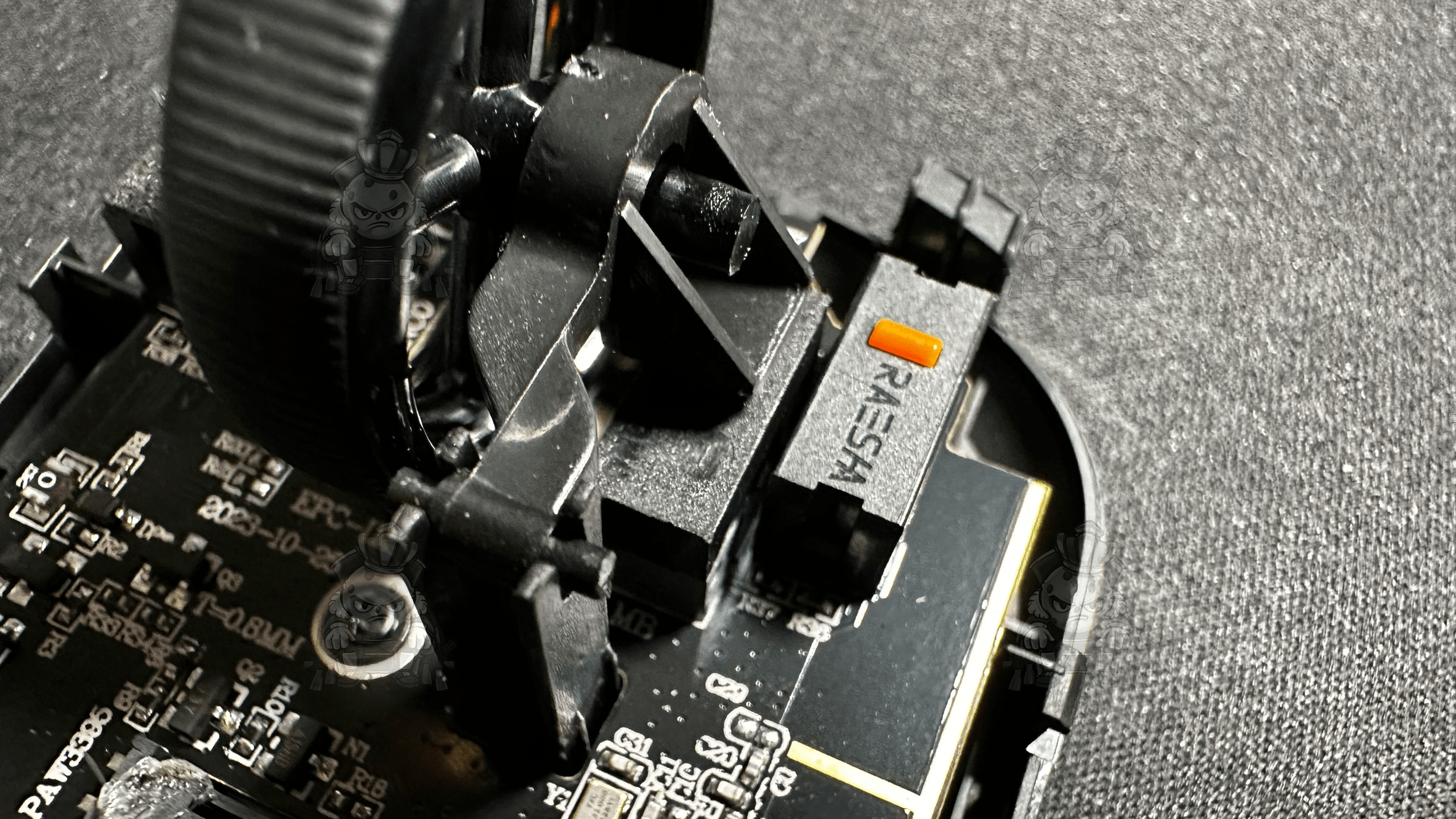

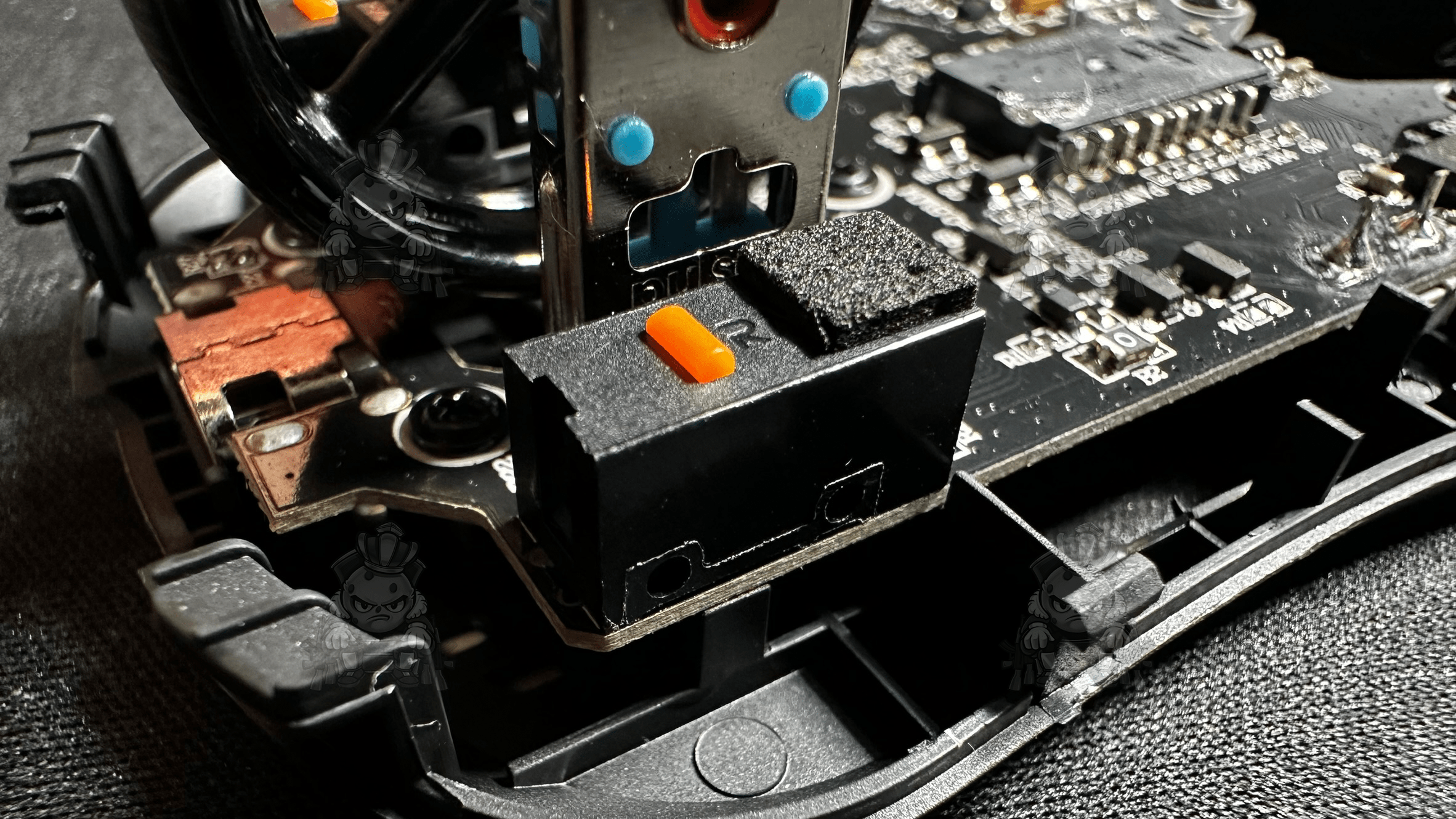

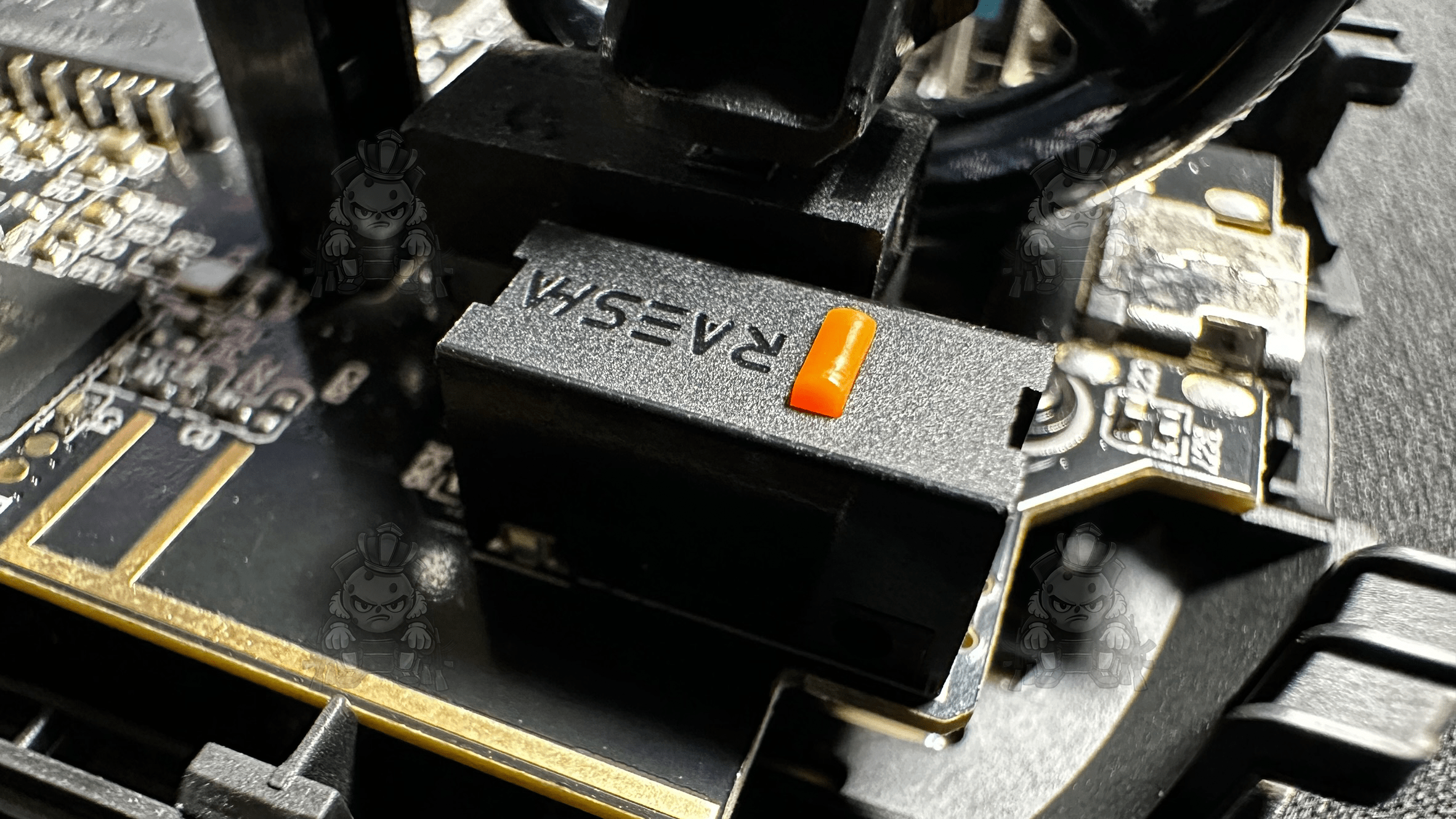

- Switches:RAESHA SMT Optical (80M)
Under each mouse button, there is a microswitch (switch) that creates the clicking sound and sends the input signal to the computer. A microswitch consists of an outer plastic housing and a small button connected to the internal mechanism. The inside of a switch contains a spring and two metallic contact points that close upon activation to complete the circuit. Currently, two types of microswitches are used in mice – the good old mechanical switches and the newer optical switches. What makes microswitches so essential for mice is that they require very little force to activate, often just 50g. Once activated, they respond almost instantaneously.
There are many manufacturers of microswitches. The more well-known ones include Omron, Kailh, Huano, Razer, and TTC. - Switch type:optical
- Debounce:0 - 20ms
Debounce is the time a switch takes to register a keypress or mouse click. In mechanical keyboards and gaming mice, the switch can “bounce” several times when pressed, causing the device to register multiple inputs for a single press. Debounce time helps eliminate this issue by ignoring additional inputs that occur within a predetermined timeframe after the first press. However, the higher the debounce, the higher the delay of the registered “clicks.” Therefore, one aims to have as low a debounce as possible without “double clicks.”
- Click latency:1ms
Measurement values relative to the base (0ms) of the Zaunkönig Mk2 & Razer Viper 8k
Click latency is the time delay between the physical click of a mouse button and the subsequent action performed on the screen. In gaming, this delay can significantly impact the player’s performance, especially in competitive gaming. For example, in first-person shooter games, the delay between clicking the mouse button to shoot and the action executed on the screen can mean the difference between winning and losing. Several factors can influence click latency, including the hardware and software used, the type of connection, and the computer’s processing speed. Gaming mice designed for competitive gaming typically have low click latency to provide a fast and responsive gaming experience. Some gaming mice also have customizable click latency settings, allowing players to adjust the response time according to their preferences.
- Wireless:

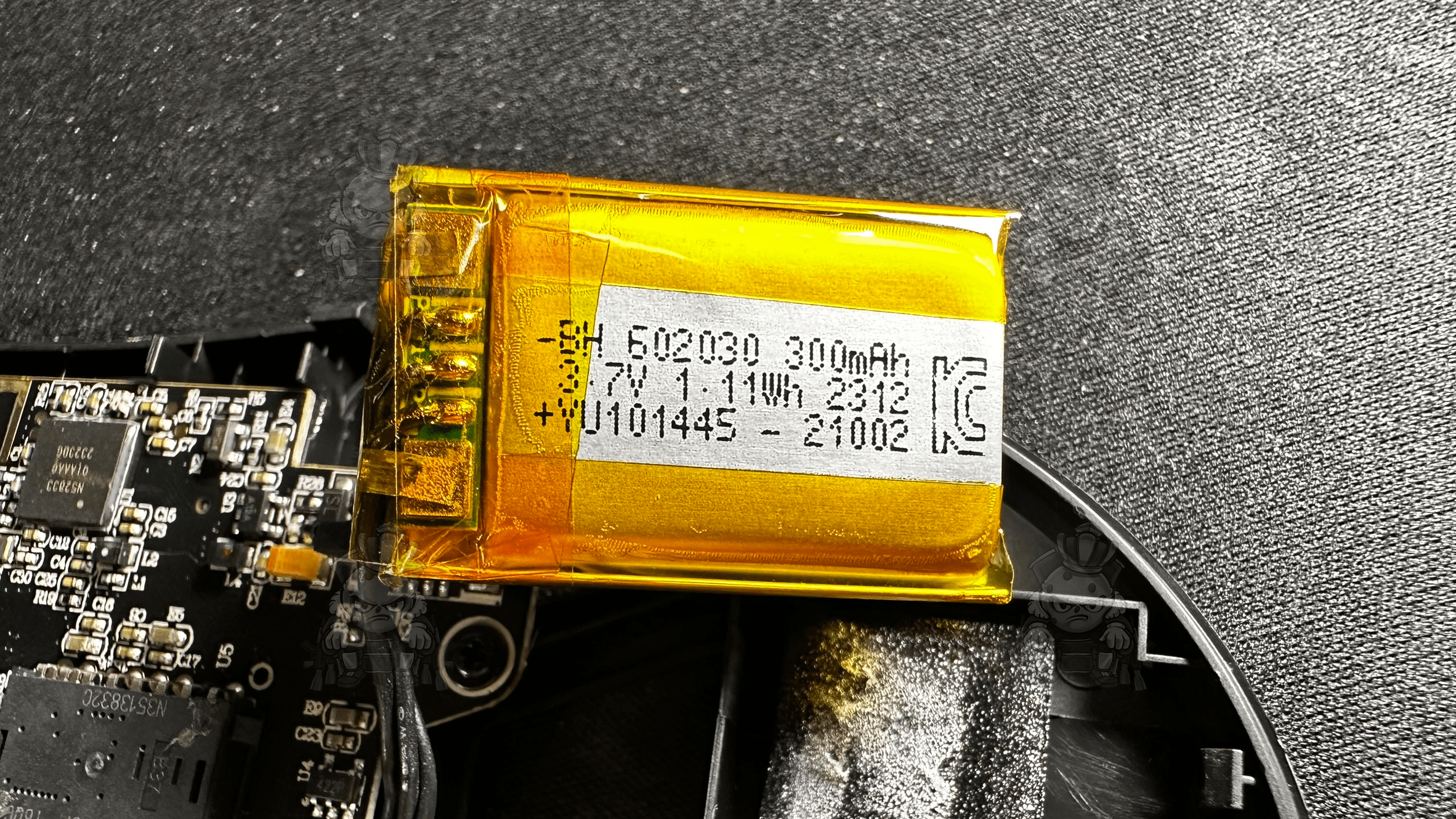

- Battery capacity:300mAh
The capacity of the battery is indicated in mAh, which stands for milliampere-hours. It is a unit for measuring the electrical charge stored in a battery. The higher the mAh number, the more charge the battery can store, and the longer it will last.
- Battery life:24h
Important note:
The battery life always refers to the “best” mode that generally consumes the most power. This means:
- highest polling rate (e.g., 4,000 Hz)
- best wireless mode (e.g., 2.4G)
- best sensor mode (e.g., Comp-Mode on)
- RGB (on if available)
- Charging via:USB Type-C
Dimensions
- Size:medium
- Length:122.2mm
- Grip width:62.2mm
- Height:42.9mm
- Weight:55.0g
- Shape:ergonomic
Design
- Color(s):white, black
- Finish:matt
- Design(s):solid color
Product images
Miscellaneous
- Available since:November 23, 2023
- RGB:
- NVIDIA® Reflex compatible:
NVIDIA G-SYNC Displays with Reflex feature the world’s first and only System Latency Analyzer, capable of detecting clicks from Reflex-compatible mice and measuring the time it takes for the resulting pixels (muzzle flash) to change on the screen. Start every fight with the confidence and assurance that your PC is operating with the lowest possible system latency.
- Paracord:
Paracord is typically a woven or braided (not to be confused with traditional heavy braided cables) nylon cable, used in a variety of applications. Paracord became famous for its use in the military and climbing industries and is considered incredibly durable. When used in gaming mice, Paracord cables are usually lighter than traditional mouse and braided cables. The light design and flexibility allow for more freedom of movement, resulting in easier movements and quick pivots during gameplay. Besides the lower weight, Paracord also offers less “cable drag” because nylon has lower friction. Combined with a mouse bungee, the negative aspect of using a wired mouse practically disappears for most users. However, it’s noteworthy that not all wired gaming mice include a Paracord cable, and not all Paracord cables are the same. This is important to consider when purchasing a new mouse, as a wireless mouse may still be lighter or more free in movement.
- Cable type:Paracord
- Mouse skatez:Default PTFE
- Software:Pulsar Fusion
Disclaimer: The data and mousepad specifications on my website are provided “as is, as available” without any warranty. I assume no responsibility for any damages that could be caused by errors on my site. Please verify all information directly on the manufacturers’ websites.
Highlights
ASUS ROG Harpe Ace Extreme
ASUS ROG Harpe Ace Extreme Review: A Premium Ultralight Gaming Mouse for Demanding Players
The ASUS ROG Harpe Ace Extreme is a wireless gaming mouse meticulously crafted for players who demand the...
read moreread review
LAMZU MAYA 8K
Lamzu MAYA 8K Series
The Lamzu MAYA 8K Series, a collaboration between Fnatic and Lamzu, offers unparalleled performance and quality for all gamers. Available in two sizes—MAYA 8K for smaller hands...
read moreread review
LaOnda Rizz
RIZZ
Is the exceptional pad at a world-class level, designed for all games. It’s an ultra-fine microfiber control pad with an edge stitching that lies below the surface of the pad itself.
We...

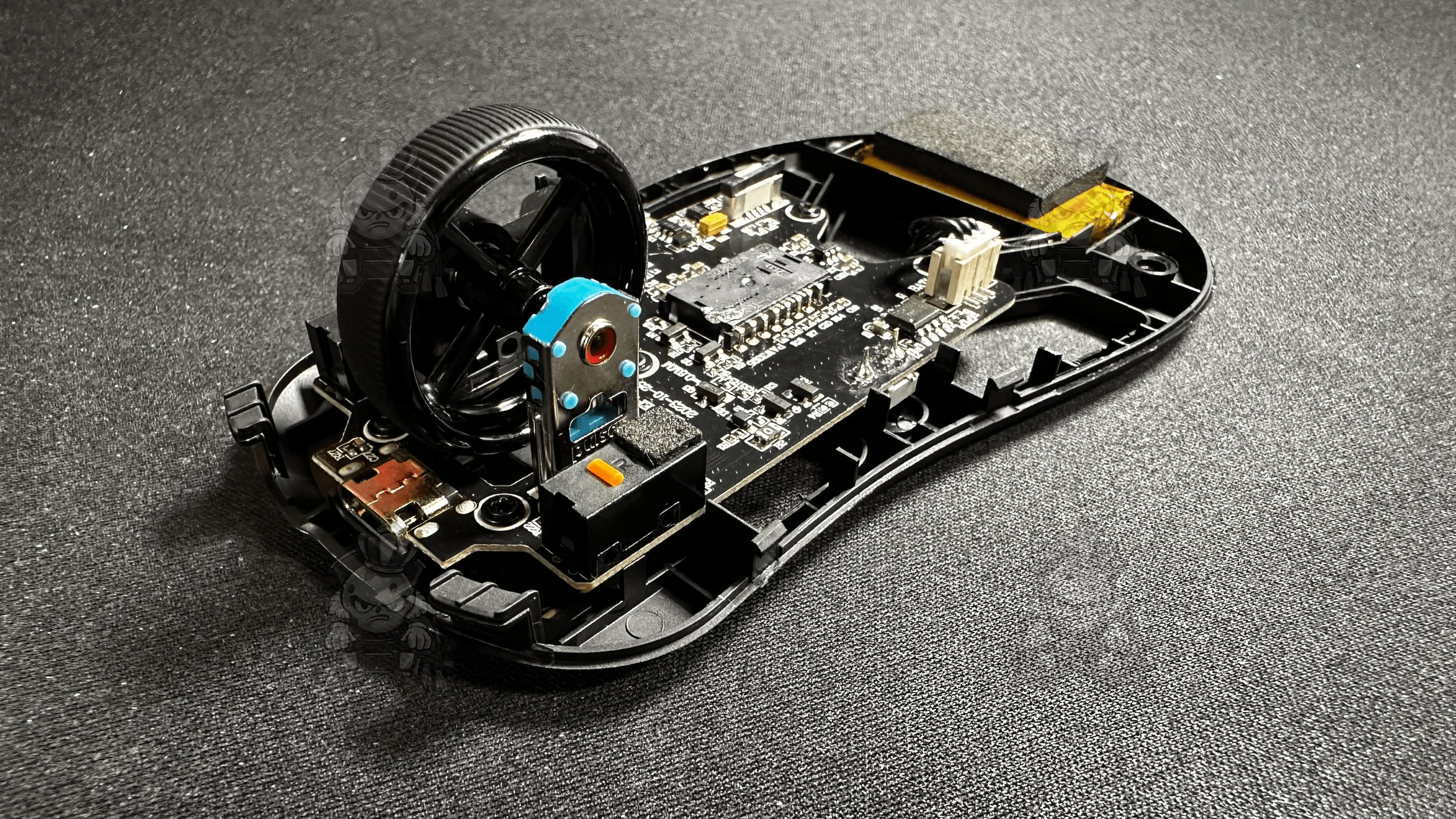

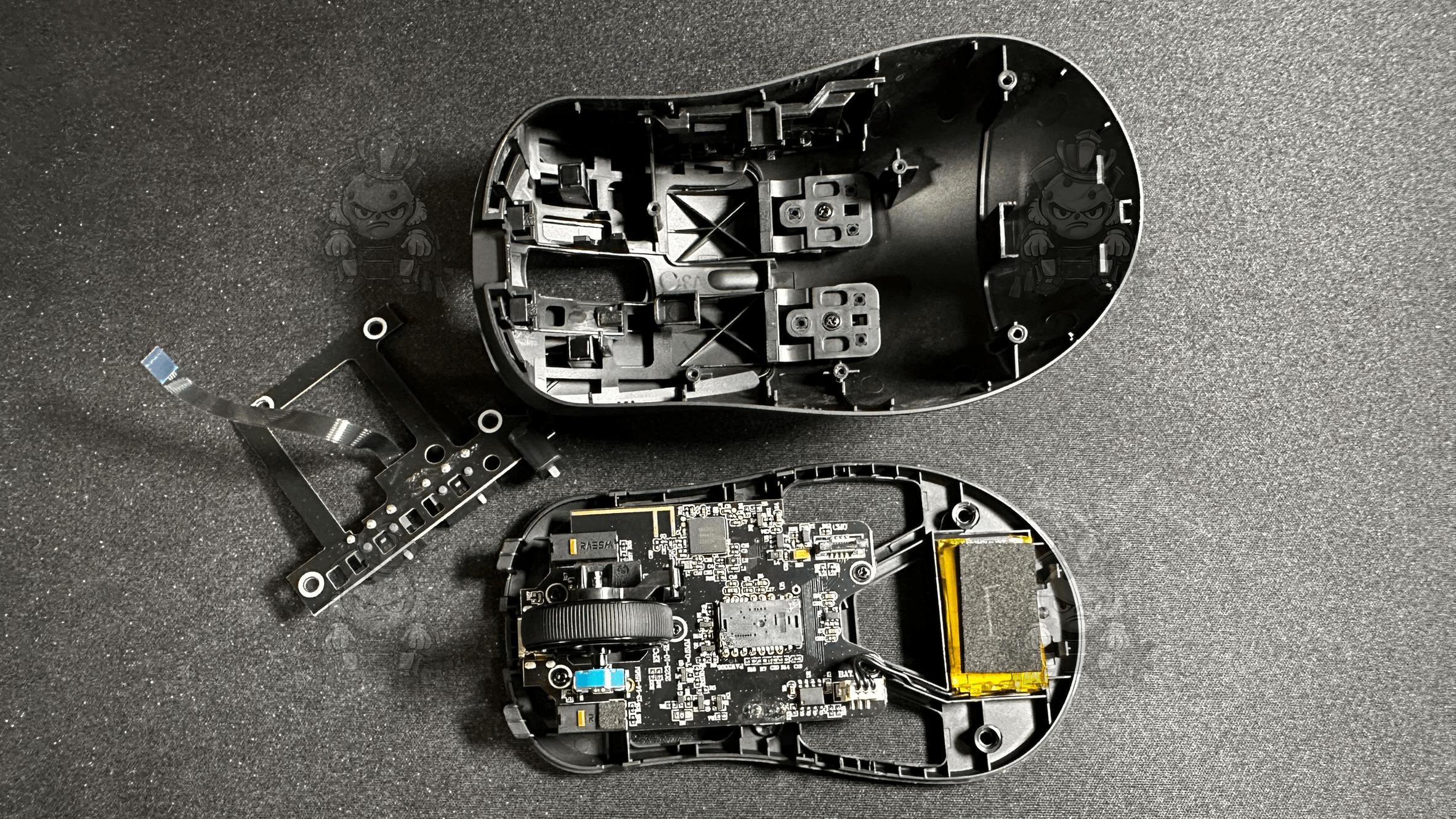

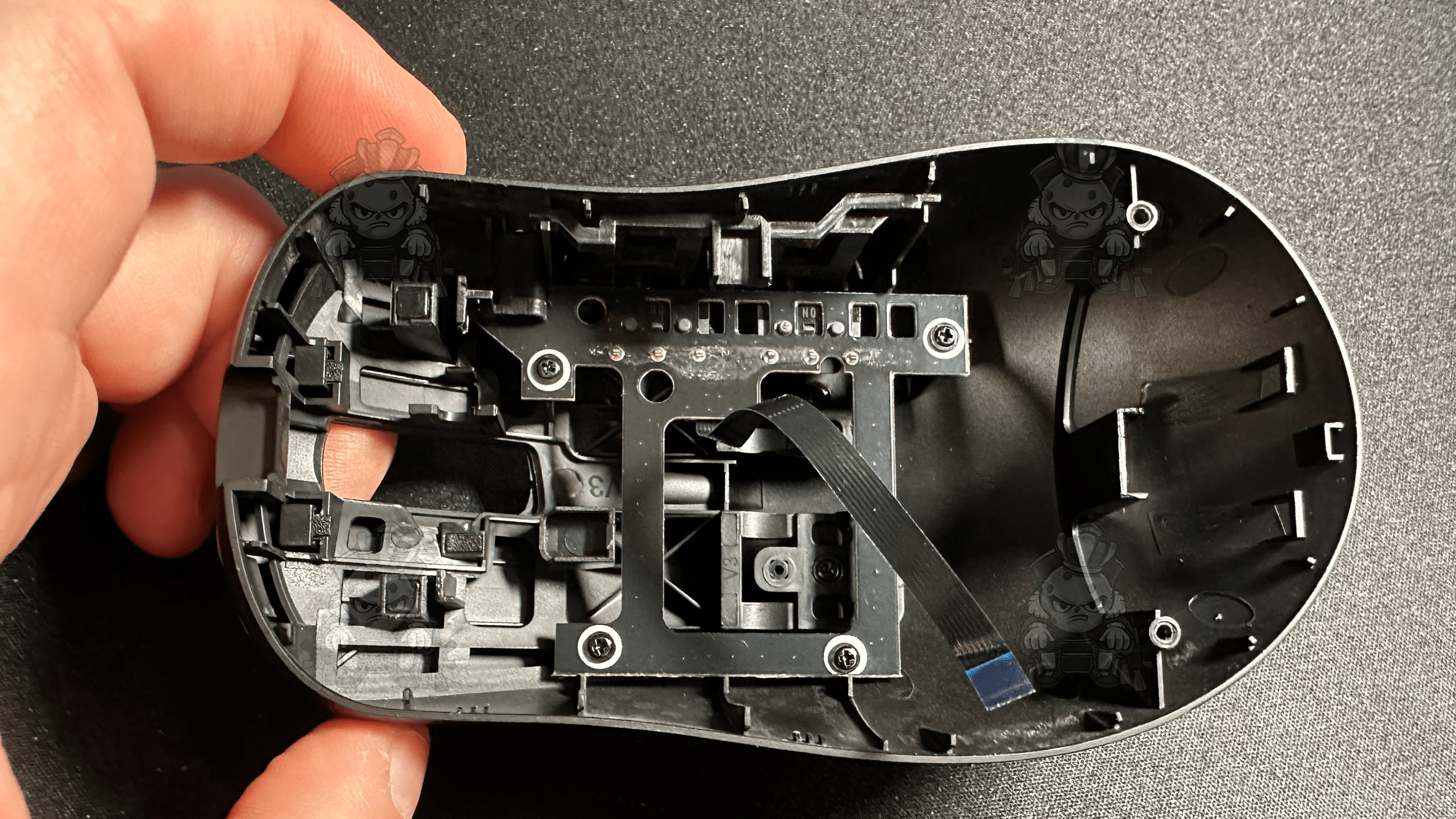

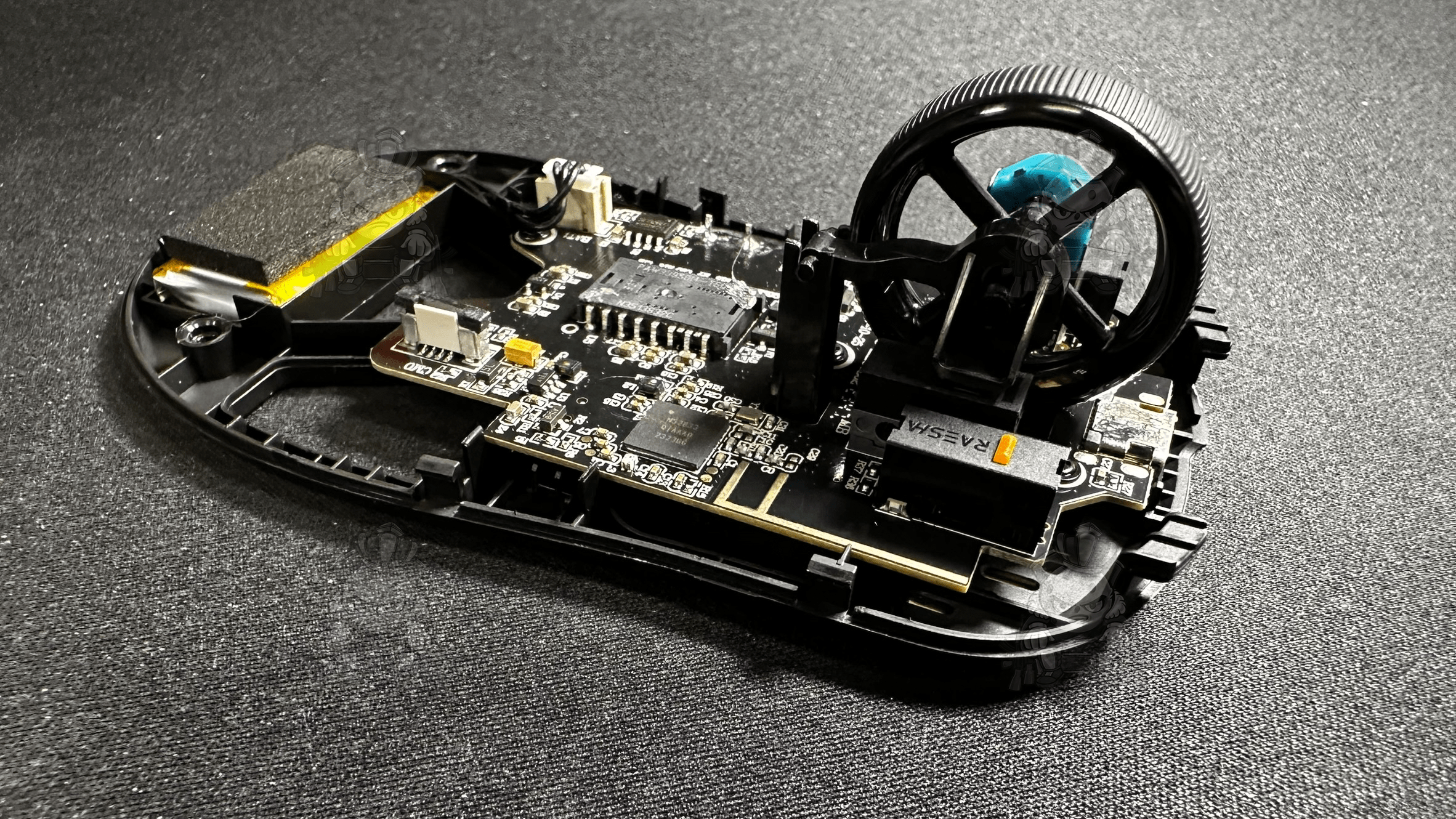

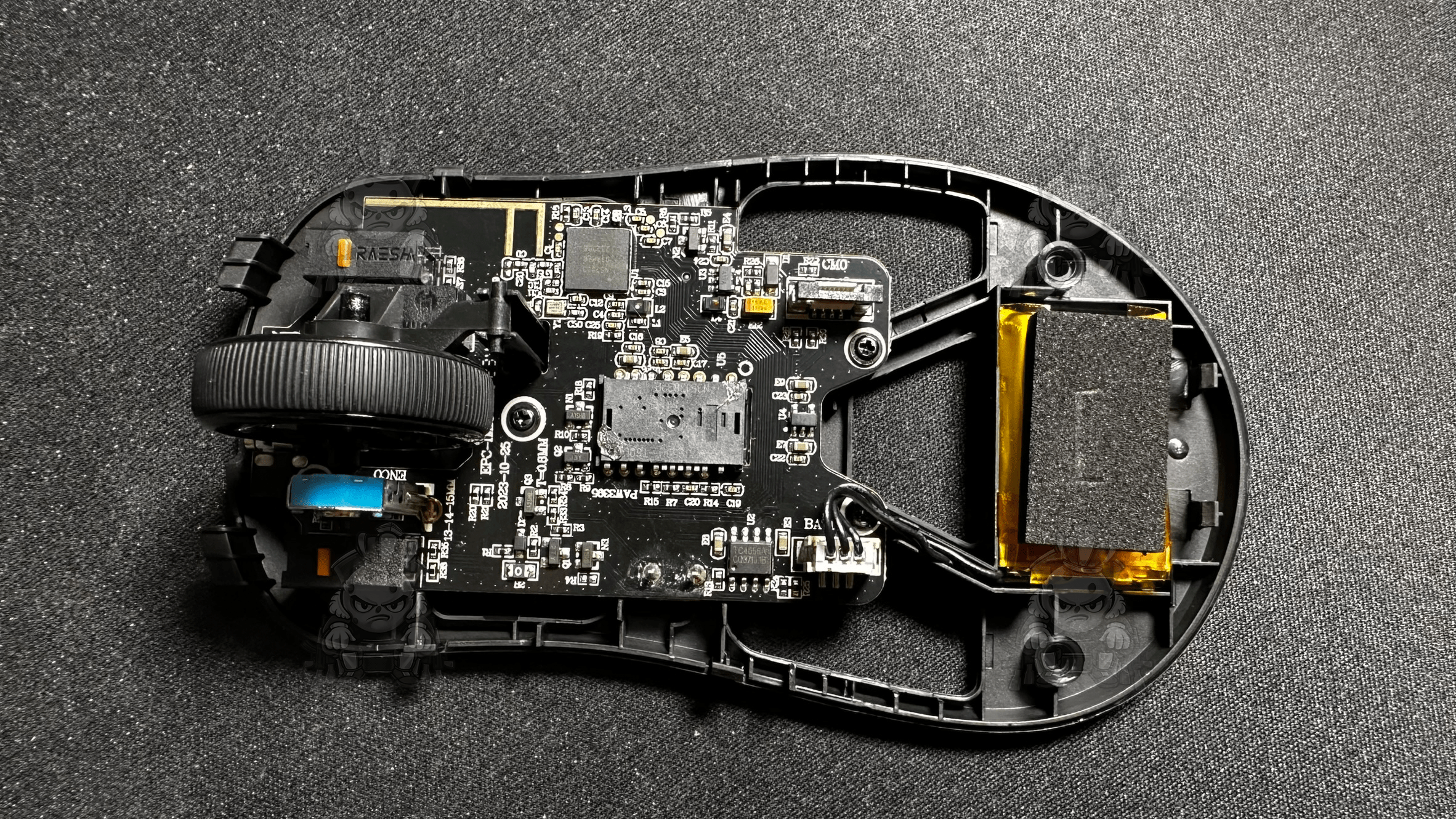

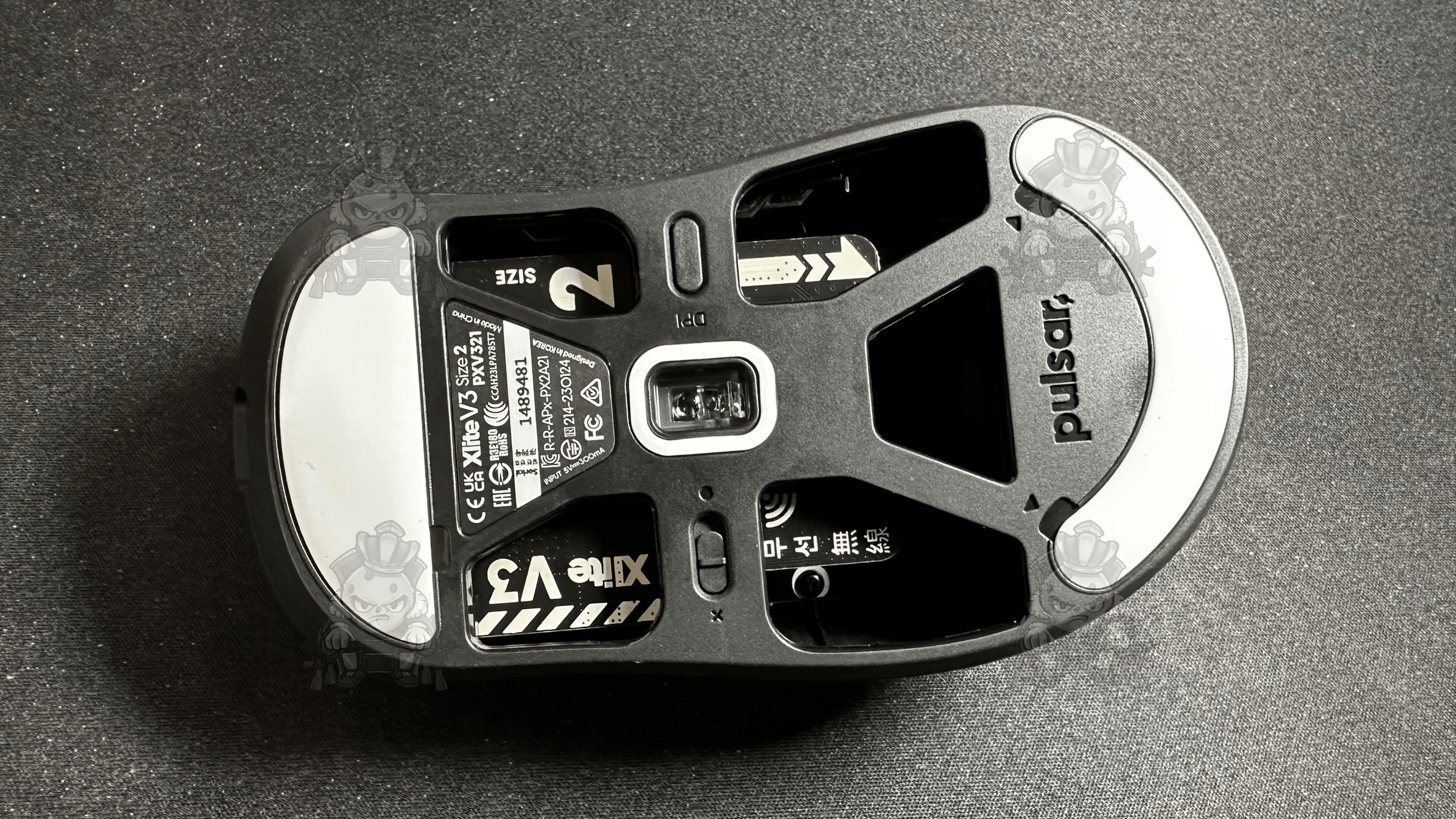

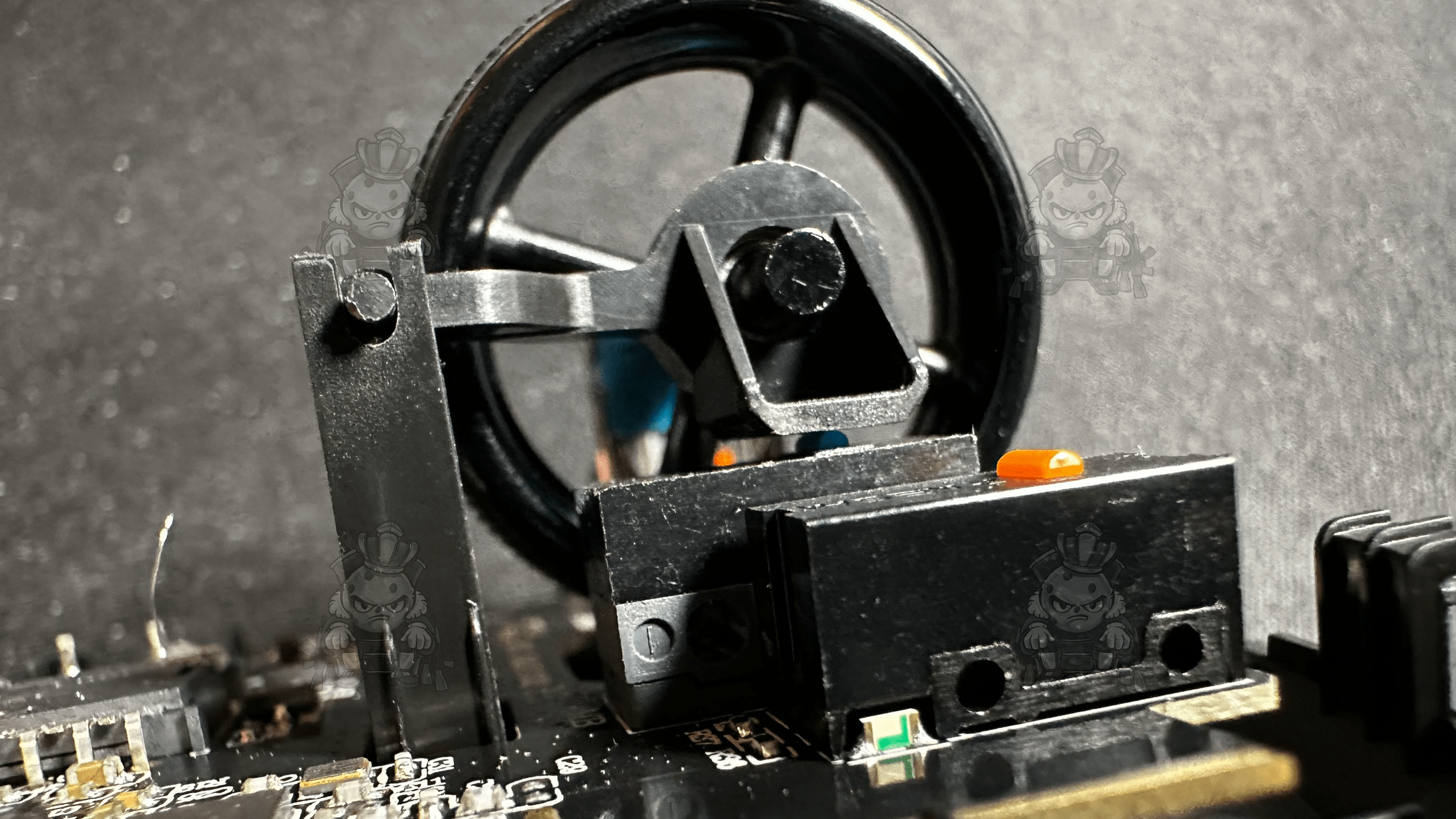

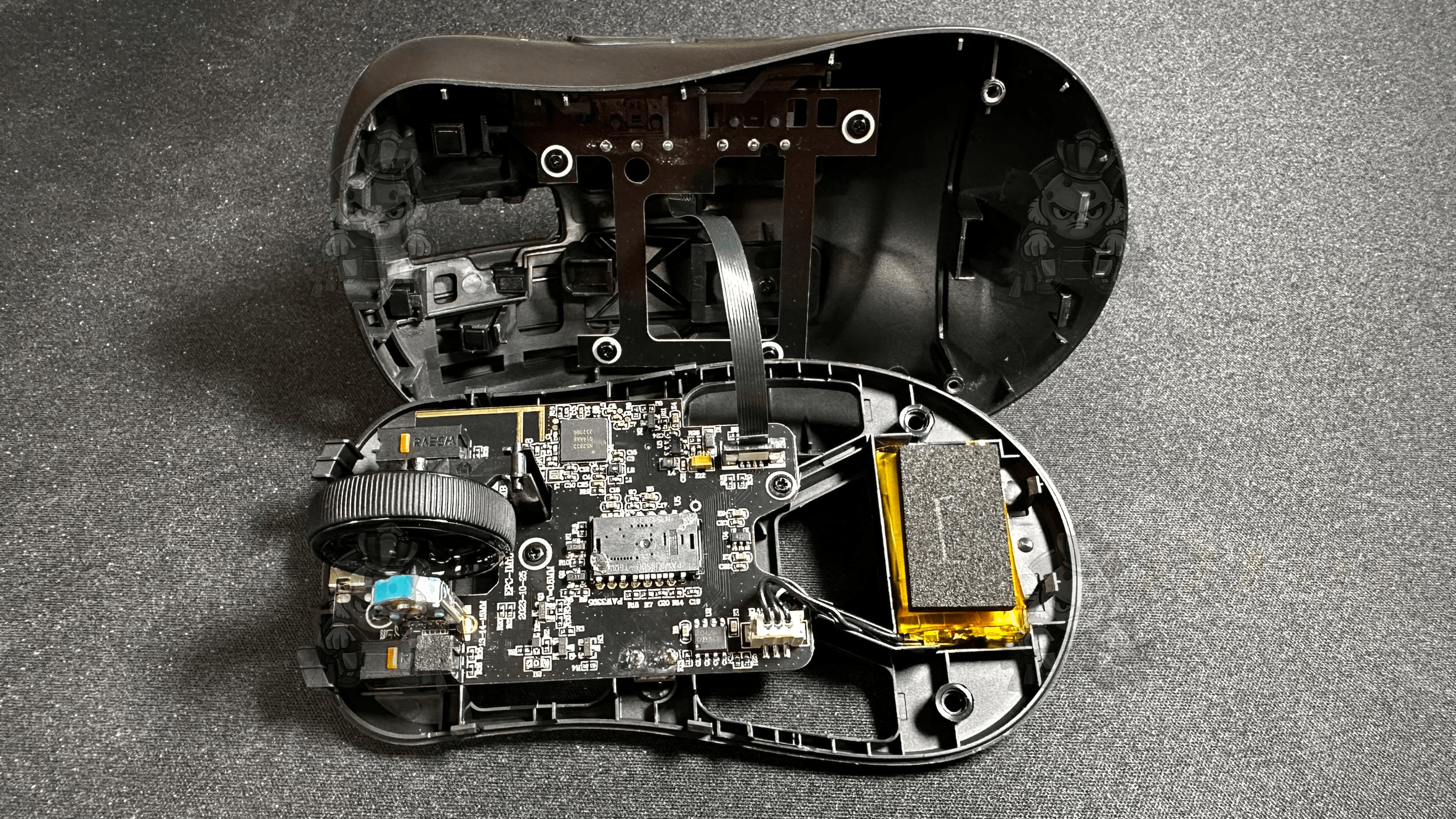

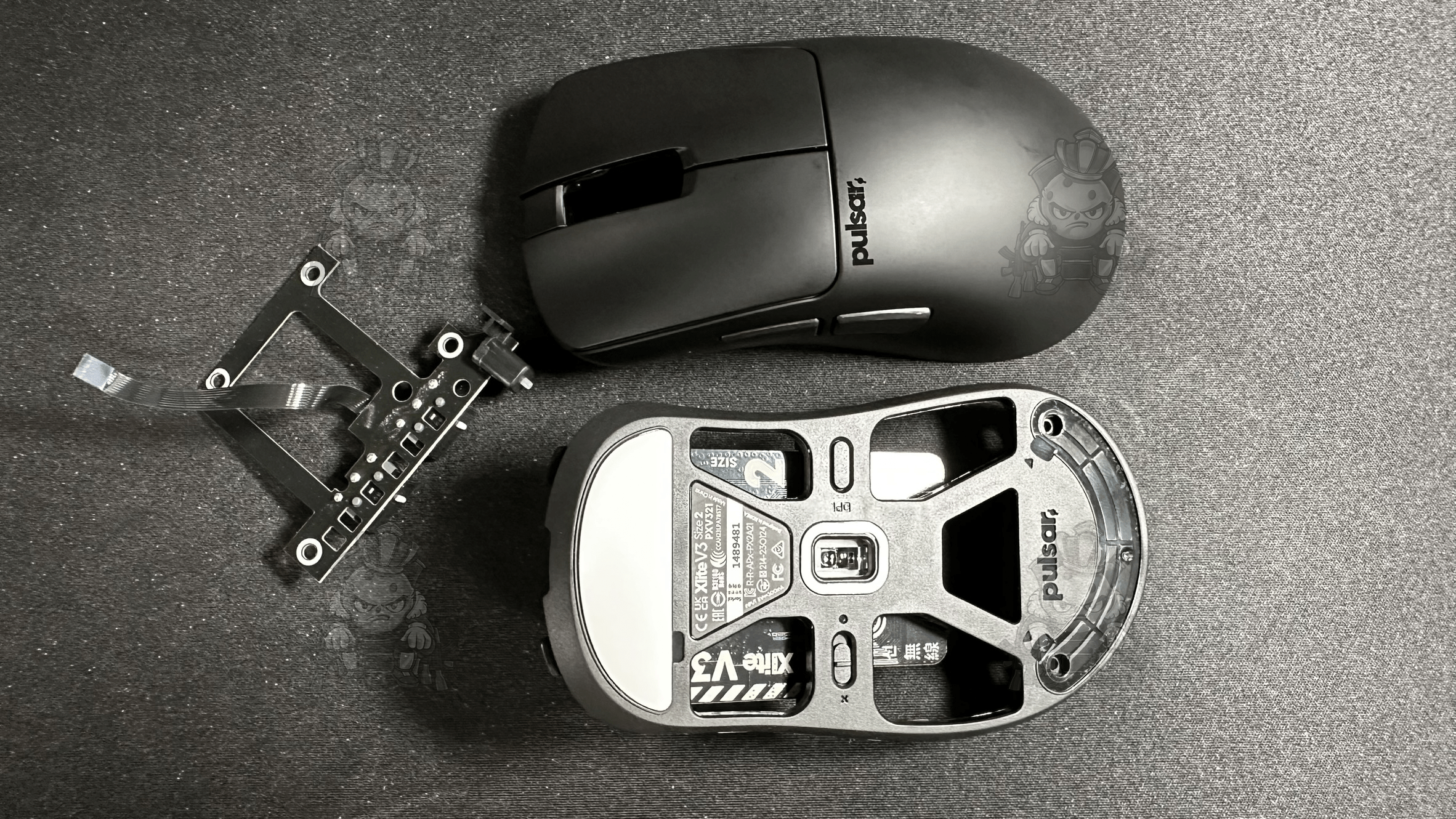

read moreread reviewTeardown images
Available at:Manufacturer's suggested retail price (MSRP):$99.95
All links are affiliate links & by making a purchase, I receive a small commission with which I finance the reviews . This is completely free of additional costs for you & supports me greatly.
Product video
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationManufacturer's product description
Ergonomic Excellence for Every Hand Size
The Xlite V3 gaming mouse is an ergonomic marvel designed for right-hand palm grips, ensuring superior comfort during extended gaming sessions. It features a PAW3395 sensor, pulsar blue encoder, and fast, double-click-free optical switches, making it the ideal choice for competitive eSports. With lag-free 2.4GHz wireless technology, up to 100 hours of battery life, and a ±10% 1000Hz polling rate, it delivers both grip comfort and high-performance gameplay.
SUPER COMFORT
The Xlite V3 gaming mouse redefines ergonomics with a focus on right-hand palm grips, providing unparalleled comfort for marathon gaming sessions. Its thoughtful design ensures both grip comfort and high-performance gameplay, making it the go-to choice for competitive gamers. What sets it apart is its versatility, offering three different sizes – mini, medium, and large – to cater to individual preferences and hand sizes. Experience precision, comfort, and peak performance with the Xlite V3, tailored to your gaming needs.
SPLIT CLICK SHELL
The split-click mechanism divides the left and right buttons, allowing for independent actuation and reducing click latency.
INDIRECT WHEEL CLICKS
New cutting-edge design incorporates high-quality precision ball bearings, providing smoother rotations without any rattling.
RIGID SHELL STRUCTURE
Reinvented for superior performance, our gaming mouse now features increased shell rigidity. We’ve eliminated the perforations for added durability while maintaining a lightweight design. Experience enhanced support and reduced weight, striking the perfect balance for optimal gaming precision.
NO LAG, NO DELAY, LOW POWER2.4Ghz WIRELESS / WIRED TECHNOLOGY
You can either use it wirelessly or wired without the lag. Using the latest MCU and algorithm, it provides wire-free, consistent connectivity with a stable 1 ms report rate. Combining with Pixart’s flagship low-power sensor, it also allows the mouse to have an outstanding 100 hours battery life.
Comes with the next generation receiver and receiver 2.4Ghz adapter.
ULTRA LIGHT WEIGHT
“Simple but not simpler.” We kept this in mind all the time when we designed Xlite structure. We designed a structure as simple as possible but maintained its durability. In the result, you are getting high performance gaming mouse that is lighter than the egg in your hand.
Pulsar Blue Encoder
Introducing the Pulsar Blue Encoder, a recent breakthrough resulting from a successful collaboration with our trusted encoder manufacturing partner. This encoder is designed to provide users with a delightful tactile rotation sensation, all while operating quietly and smoothly. Moreover, its built-in dust-proof mechanism ensures a higher level of reliability by minimizing the risk of potential faults caused by micro dust particles.
SPEED OF LIGHT ,OPTICAL SWITCH
Optical switches avoid double-clicking issues because they don’t have physical contacts prone to wear and bouncing, unlike mechanical switches. They use light-based detection, making unintended double clicks less likely. They are also fast due to this light-based detection mechanism, offering quick and precise responses. In addition, the switches are pre-sorted into 3 stages to provide you with light click switches.
THE MOST EFFICIENT AND POWERFUL SENSOR
Introducing the Xlite V3, featuring the latest flagship PixArt’s PAW3395 sensor. With its impressive capabilities, including high performance at 26000 dpi, 650 IPS, and 50G acceleration, it is optimized to deliver a top-notch competitive gaming experience. The main chip processor has been upgraded to the industry’s leading Nordic MCU, providing exceptional power efficiency and precise, fast processing. As a result, the battery life is extended, and the battery reading is now highly accurate, ensuring you can enjoy extended gaming sessions without worry.
PixArt Motion Sync Technology
This latest flagship sensor from Pixart has the highest specs in the market with extreme precision of 99.6% resolution accuracy. However, this does not mean the sensor is more accurate tracking. To make your sensor more accurate tracking, the Motion-Sync Technology is built into the sensor. Your PC extracts information from another sensor at a rate that does not perfectly match the signal the mouse sends out when it extracts information from another sensor. The Motion-Sync Technology synchronize its signals intelligently at the exact intervals your pc extracts information. This allows the tracking to be very accurate. However, this may cause some motion-delay (less than 1ms) that is not noticeable during in-game play. You can choose to turn on and off this Technology by Pulsar Fusion Software.
FULLY CUSTOMIZE IT YOUR WAY
Precisely adjust everything with our Software. Re-assign keys, make macros, adjust debounce time as low as 2ms and more.
4K Polling Ready
Experience an enhanced cursor movement with the new Pulsar 4K Wireless Dongle, providing smoother and crisper performance. Particularly valuable for high refresh rate monitors, the high polling rate ensures a more current flow of data, perfectly matching the display’s faster frequency. By offering up to 4 times more data reports per second, the delay between the latest report and your monitor’s frame rendering is significantly reduced compared to a 1000 Hz polling rate, resulting in a seamless and up-to-date cursor experience.
* Separate 4K Dongle Purchase required.
